6.2KW 3.6KW 1.6KW Hybrid Solar Inverter 230V Off Grid Solar Inverter 24V 48V MPPT 120A Charge Controller Max PV 450Vdc with WIFI

Upgradation

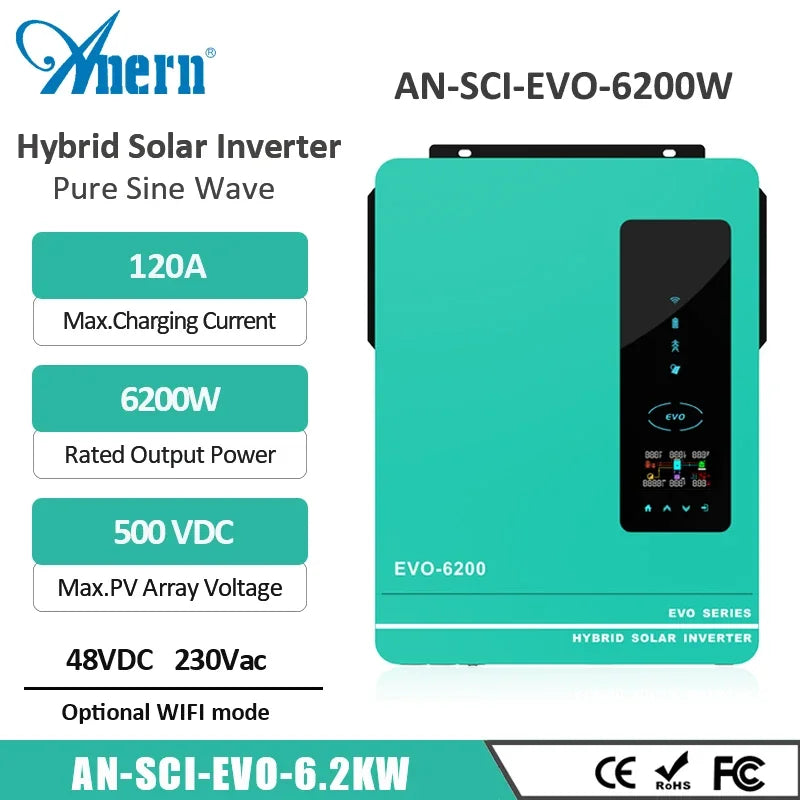

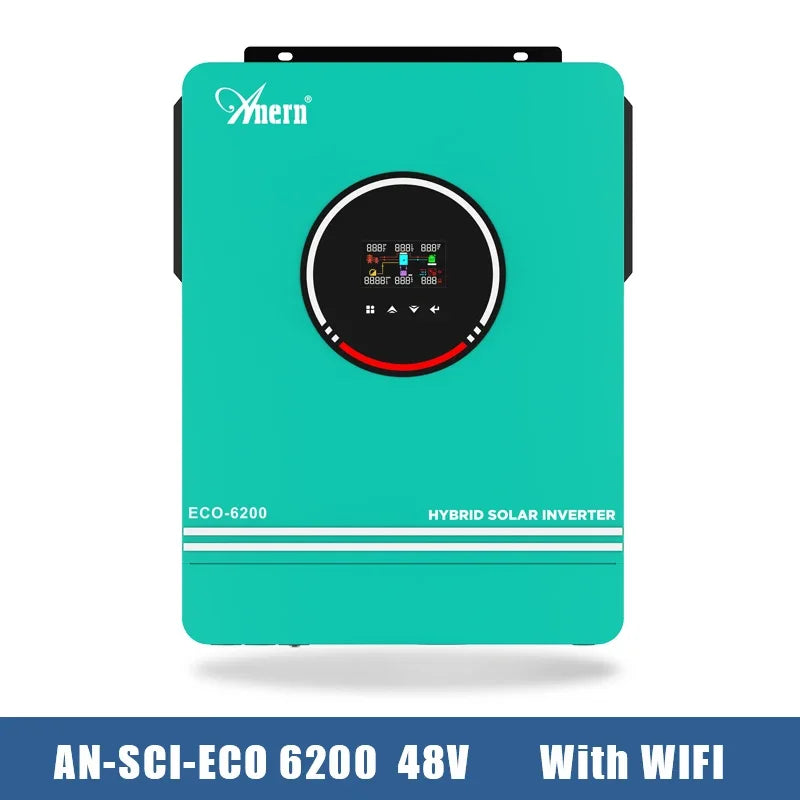

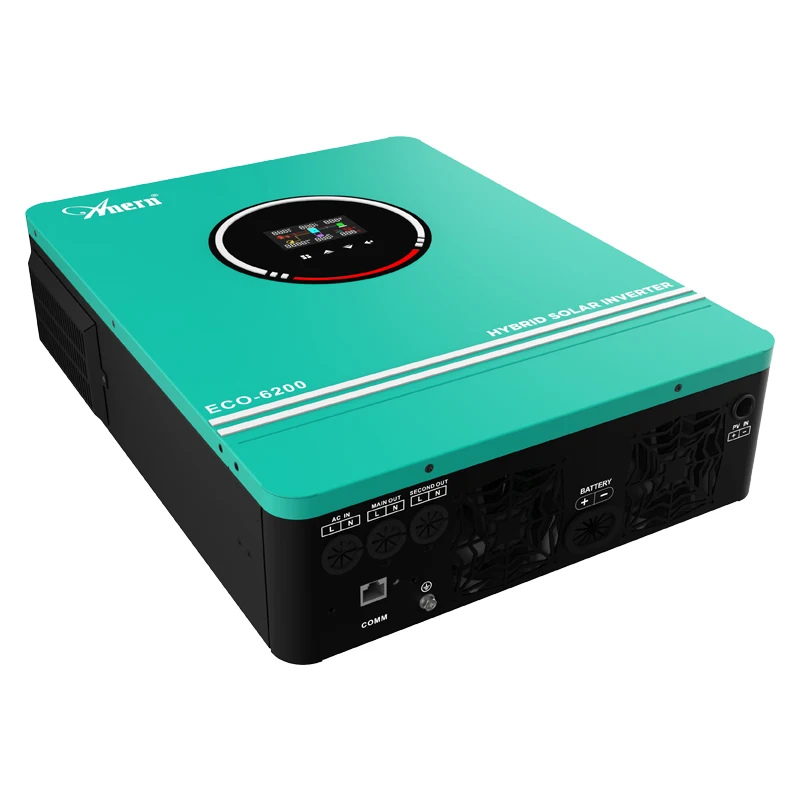

AN-SCI-ECO-6200 & AN-SCI-EVO-3600

1. It can work with or without battery. However, without battery, the solar panel voltage has to exceed 360 Vdc.

2. Single input, Dual AC output.

3. Based on the same parameters as PRO series solar inverter, it adds dual AC outputs and removes the logistically fragile MC4 connector on the PV side.

4. It is a hybrid inverter that can be both off-grid and on-grid connected. Whether or not it can sell electricity into the grid depends on local government policy. But our solar inverters do not have VDE certification and may not be on-grid connected in some countries.

Dual output function description:

The main and secondary outputs are used in normal condition. But in the following two conditions, the main output is disconnected and only the secondary output is retained:

- when there is no solar power input and mains power input;

- when the battery voltage is lower than 44V (the minimum can be set to 41V, and the maximum can be set to 46V);

Features of Module

Self-consumption and feed-in to the grid.

Inverter running without battery.

One-key restoration to factory settings.

Built-in Lithium battery automatic activation.

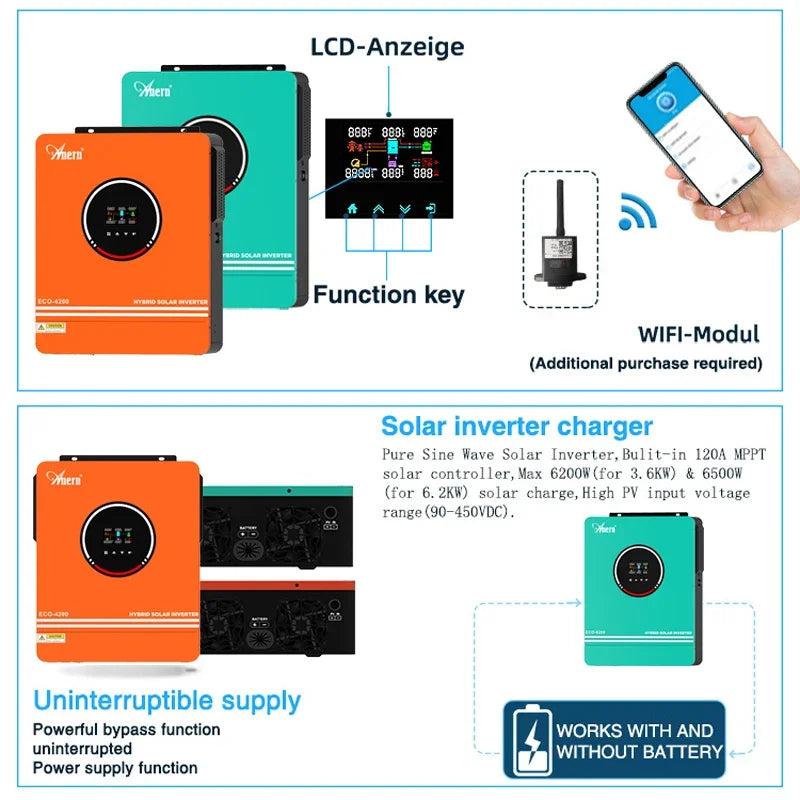

Bulit-in 120A MPPT solar controller.

Max 6200W(for 3.6KW) & 6500W(for 6.2KW) solar charge.

High PV input voltage range(90-450VDC).

Built-in anti-dusk kit for harsh environment.

Smart battery charge design to optimize battery life.

Dual Output.

Advantages of dual output:

In a power generation system using lithium batteries for storage, when the inverter is under full load or high-power load, due to the characteristics of lithium batteries, the battery voltage tends to drop too quickly, which shall make the battery voltage too low and disconnect the battery while the battery bank still keeps 50% of rated power.

With the dual output function, user can connect some important loads to the secondary output. When the battery voltage is low (typically lower than 44V, with a minimum setting of 41V), the inverter shall disconnect the main load and ensure the output of the secondary load, which can extend the operation time of the secondary load.

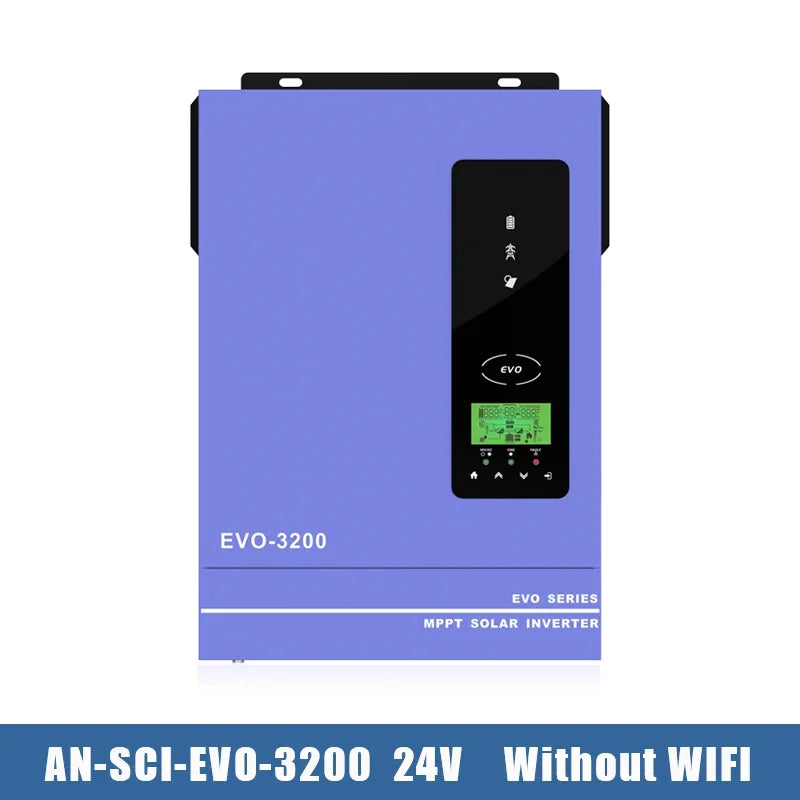

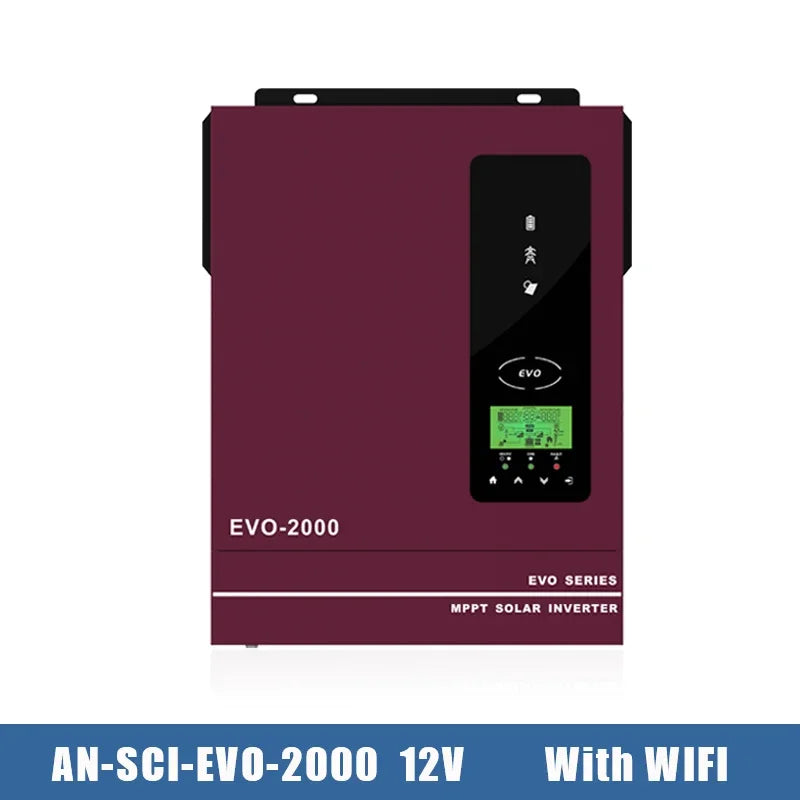

Model		SCI-EVO-2000	SCI-EVO-3200
RATED POWER		2000VA/1600W	3200VA/3000W
AC INPUT
AC Input Voltage		230VAC
Selectable Voltage Range		170-280 VAC (For Personal Computers)
		90-280 VAC (For Home Appliances)
Frequency Range		50 Hz/60 Hz (Auto sensing)
AC OUTPUT
AC Voltage Regulation (Batt. Mode)		230VAC ± 5%
Surge Power		4000VA	6400VA
Efficiency (Peak) PV to Inverter		98%
Efficiency (Peak) Battery to Inverter		94%
Transfer Time		10 ms (For Personal Computers);20 ms (For Home Appliances)
Waveform		Pure sine wave
BATTERY & AC CHARGER
Battery Voltage		12VDC	24VDC
Floating Charge Voltage		13.5VDC	27VDC
Overcharge Protection		16VDC	33VDC
Maximum AC Charge Current		60A
SOLAR CHARGER
Maximum PV Array Power		2000W	3000W
MPPT Range @ Operating Voltage		30-400VDC
Maximum PV Array Open Circuit Voltage		400VDC
Maximum Charging Current		80A
PHYSICAL
Dimension, D x W x H (mm)		360*270*100mm	390*270*100mm
Net Weight (kg)		4.4	5.4
INTERFACE
Communication interface		WIFI
OPERATING ENVIRONMENT
Humidity		5% to 95% Relative Humidity(Non-condensing)
Operating Temperature		–10°C - 50°C
Storage Temperature		–15°C - 60°C

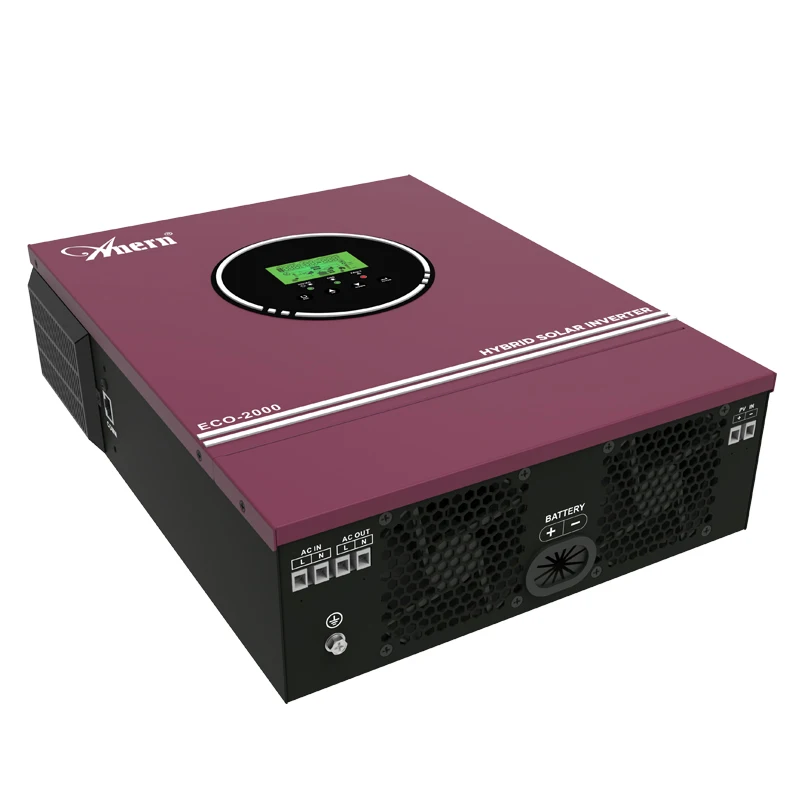

AN-SCI-ECO-3000 & AN-SCI-ECO-2000



1. It need connect to battery.

2. Single input, Single output.

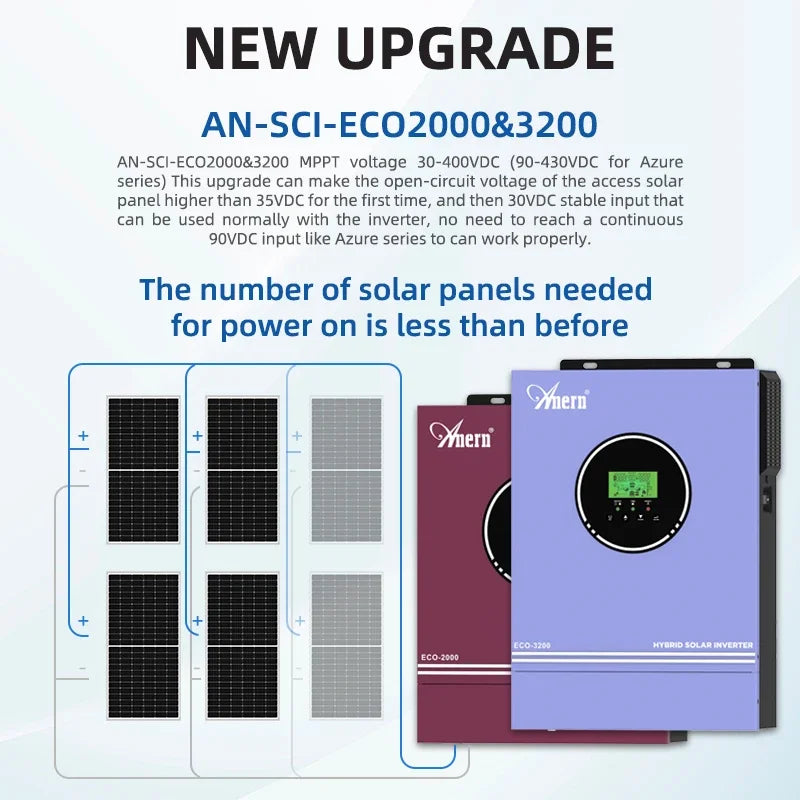

3. The MPPT voltage is 30-400VDC (90-430VDC for Azure series solar inverters), this upgrade allows the open circuit voltage of the connected solar panels to be higher than 35VDC for the first time, followed by a stable input of 30VDC for normal use of the inverter, meaning that less solar panels are needed to power on than before.

4. It is a hybrid inverter that can not be on-grid connected.



Note:

How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.

For details, please refer to the manual recommendation or consult online customer service.

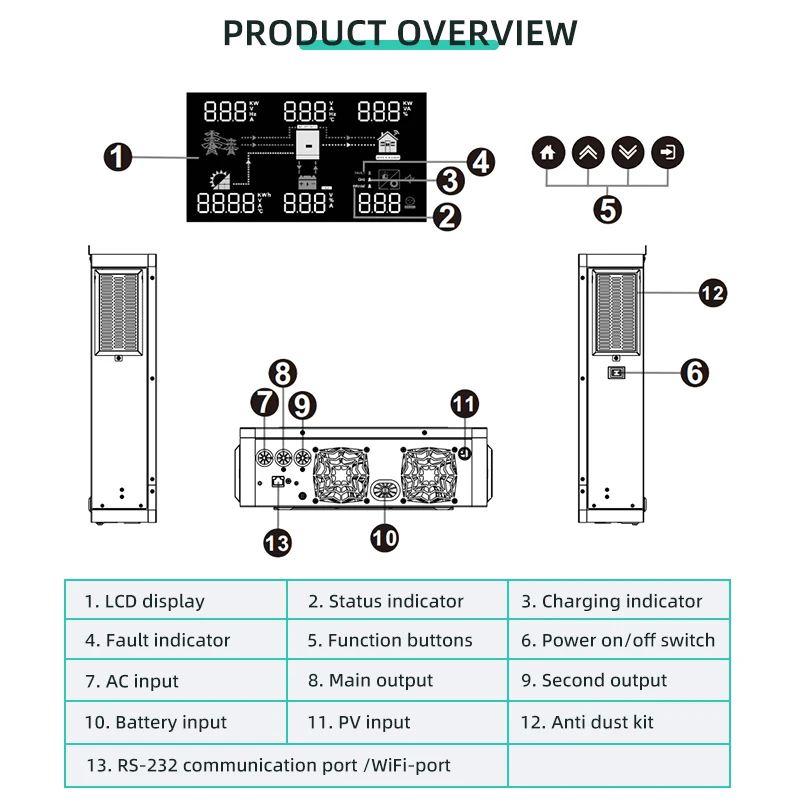

  After normal startup of the inverter, No. 8 and No. 9 have AC AC output 220/230/240V, No. 8 is the Main output mainly used for high-power load, No. 9 is mainly used for emergency power use with low-power load.

Inverter use notice

1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.

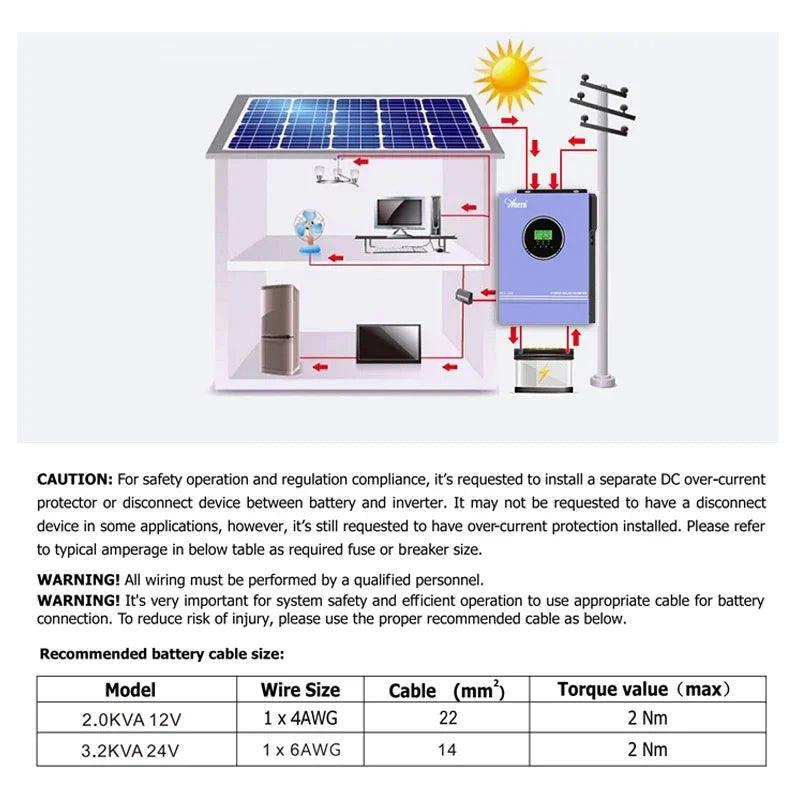

2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.

3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.

4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
